This recipe will provide a step-by-step guide to setting up a basic timing network using Timebeat software. The goal of this process will be that at the end of which you can create your own simple PTP timing networks with the steps learned in this that are tailored and customised for your needs.
Problem:
You want to be able to set up a PTP grandmaster and have downstream servers talk PTP and synchronise to the UTC source.
Ingredients (the minimum required items)
- A source of UTC
- A device operating as a PTP grandmaster
- A Local Area Network
- A device operating as a PTP slave
- Wireshark (tshark) - optional
Total Prep time: 15 mins, Total Cook time: 15 mins
In this recipe we will use a GPS antenna connected to a Timebeat Grandmaster Clock (G0kK-1) and Timebeat software
Step 1:

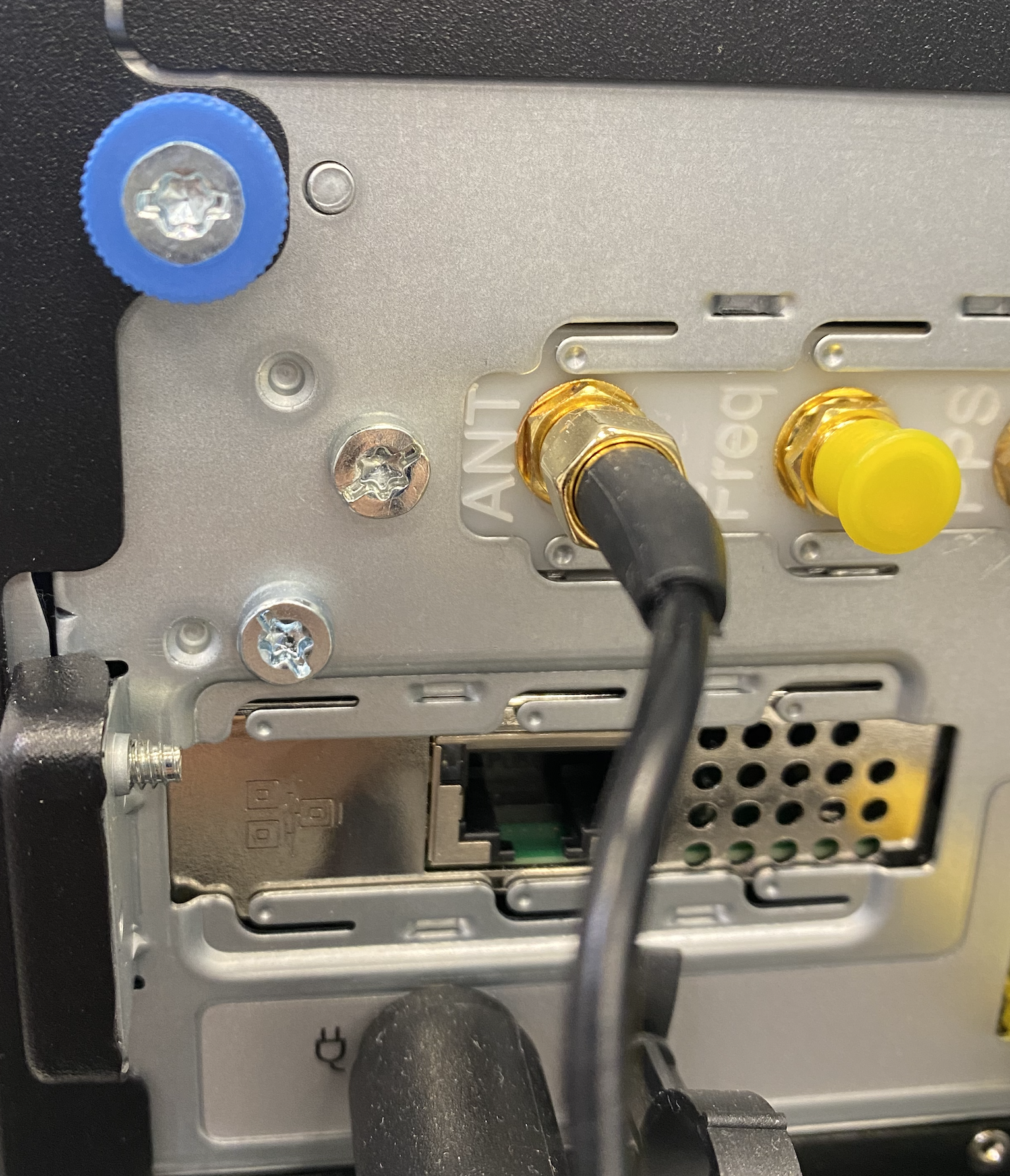

Connect the GNSS antenna to the Grandmaster
Step 2:

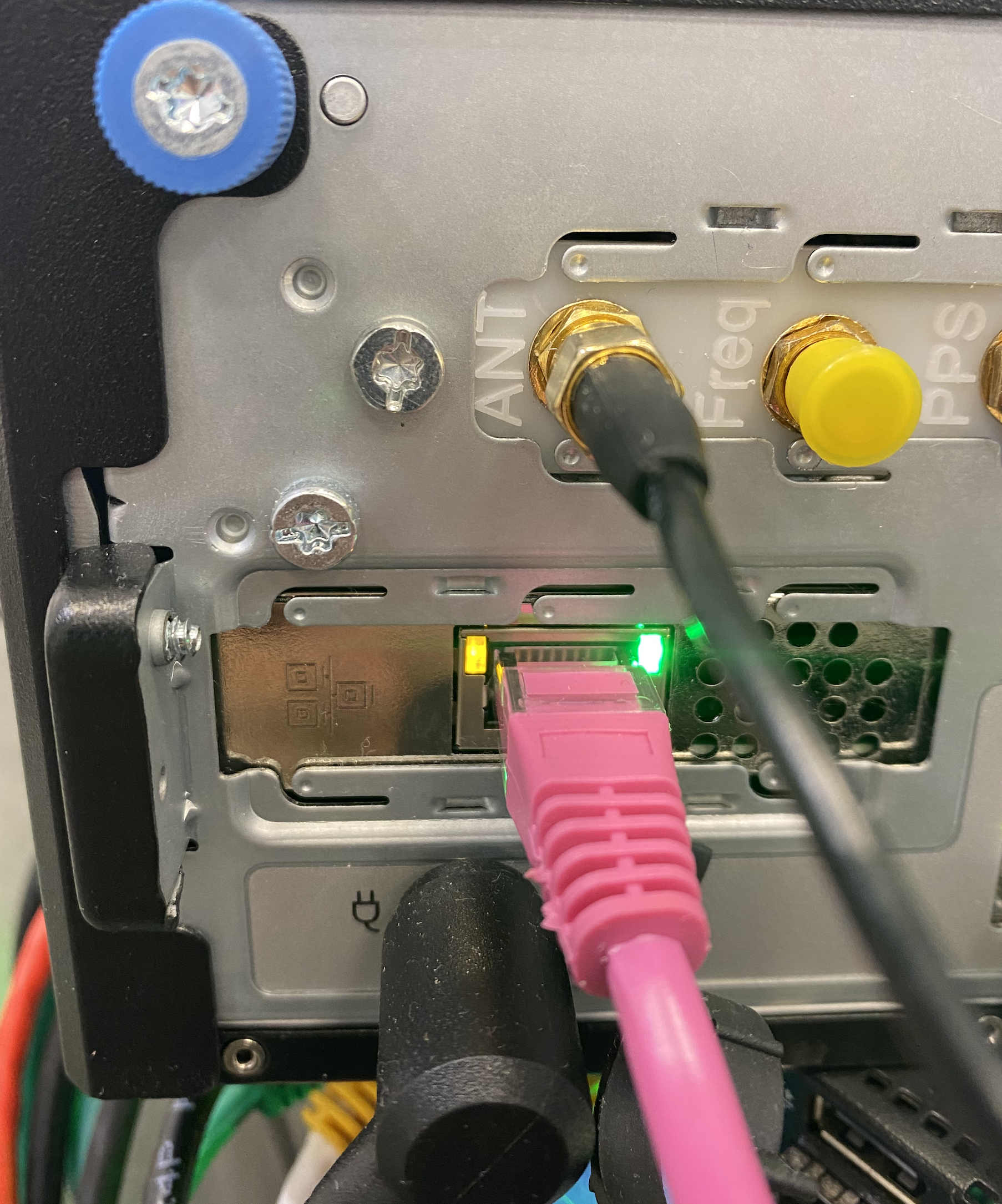

Connect ethernet cable to the appropriate network port (in this case we are connecting to ens1).
Step 3:
SSH or log into your grandmaster to configure the PTP feed. For timebeat software and grandmasters we SSH to the console and then access the config file:
LINUX:
root@gm01 ~]# vi /etc/timebeat/timebeat.yml
WINDOWS:
Open up the timebeat.yml file using notepad or similar from your installation directory (typically recommended program files --> Timebeat....)
Step 4:
(All amended fields are highlighted)
We will want to set up our PTP domain. For now, we will stick to the default of 0.
We then need to choose Unicast PTP distribution or Multicast. For this recipe, we will use multicast.
So we uncomment (remove the # from the start of the line) line 32
We will want to ensure that this device operates solely as a grandmaster
So we uncomment line 33
Lastly we will want to make sure PTP is delivered from the correct interface.
As we already cabled up interface ens1 lets just place that into the config.
For this, we uncomment line 44 and modify the interface name to read ens1
27 # PTP Config example 28 - protocol: ptp 29 domain: 0 30 #serve_unicast: true 31 #max_unicast_subscribers: 0 32 serve_multicast: true 33 server_only: true 34 announce_interval: 1 35 sync_interval: 0 36 delayrequest_interval: 0 37 #unicast_master_table: ['1.2.3.4','2.3.4.5', '3.4.5.6'] 38 #delay_strategy: e2e # other options which can be used are: 'p2p' 39 #hybrid_e2e: false # Send delay requests as unicast (enterprise profile) 40 #priority1: 128 41 #priority2: 128 42 #monitor_only: false 43 #use_layer2: false # Use ptp over ethernet instead of IP/UDP 44 interface: ens1 45 #profile: 'G.8275.2' # other options which can be used are: 'G.8275.1', 'G.8265.1' and 'enterprise-draft' 46 #logsource: 'Grandmaster Clock in NY4' # configurable name for source included in all logging records for source 47 #asymmetry_compensation: 0 # In nanoseconds. Static compensation for know asymmetry (+/- as the case maybe) 48 #max_packets_per_second: 0 # If inbound packet rate exceeds this a WRED algorithm is used
Step 6:
Now we will configure the source of UTC for the Grandmaster. In this case, we are using a Timebeat G0kK-1 grandmaster so we scroll down in the config file to the PPS section
So for this, we will uncomment every line from line 73 - 80
We want to make sure PPS is configured to the correct interface. In this case, it is ens1 so line 74 gets changed to ens1
In the G0kK-1 it is important to note PPS is delivered over Pin 1 and index 1 so we modify that on line 75 & 76
72 # 1 Pulse-per-second input config example. 1-PPS out can be configured using Timebeat CLI 73 - protocol: pps 74 interface: ens1 75 pin: 1 76 index: 1 77 cable_delay: 0 # Cable delay in nanoseconds (odds are ~5 ns per meter is a good value) 78 edge_mode: "rising" # PPS event trigger for older cards. Options are "rising", "falling" or "both" 79 monitor_only: false 80 utc_offset: 37 # If TAI or similar UTC offset add here (only meaningful is phc_as_tai enabled)
It is important to note at this stage PPS only provides minor time, so we need to configure our secondary source to be an NMEA source to provide major time to the Grandmaster.
This step is super simple as all you need to do is uncomment lines 144-148 no changes are necessary.
141 # Other vendor specific GNSS receivers input config example (can provide majortime for PPS sources) 142 # Eight data bits, no parity bit, and one stop bit (8N1) is assumed 143 # (It is not recommended to configure a Mini-JLT source if you have an alternative secondary source) 144 - protocol: timecard-mini # "mini-jlt" (Jackson Labs) is also an option 145 device: '/dev/serial0' # Serial device path 146 baud: 9600 # Serial device baud rate 147 offset: 0 # Static offset of RMC line 148 monitor_only: false
Once complete just save the config and quit. (if using vi the below command will do the trick).
:wq!
Step 7:
Now we start the service using the standard commands
LINUX:
root@gm01 ~]# systemctl start timebeat
WINDOWS:
The easiest method in Windows is to open up the Task Manager, select Processes, find Timebeat in the list, right-click and select start.
Step 8 - Optional:
Let's check to see if PTP is leaving the correct interface. For this, we will just run a quick tshark command (provided by Wireshark, on Linux if you dont have this just run "dnf install wireshark-1:3.6.2-1.fc36.x86_64 - y" or alternatively run "dnf provides wireshark" and select the appropriate package from the list.
[root@gm01 ~]# tshark -i ens1 port 319 or port 320
note that -i represents interface and ens1 is the interface we wish to check
We should see output like the below:
[root@gm01 ~]# tshark -i ens1 port 319 or port 320
Capturing on 'ens1'
** (tshark:35277) 17:10:22.266280 [Main MESSAGE] -- Capture started.
** (tshark:35277) 17:10:22.266340 [Main MESSAGE] -- File: "/var/tmp/wireshark_ens1xgePUf.pcapng"
1 0.000000000 10.101.103.31 → 224.0.1.129 PTPv2 106 Announce Message
2 0.008392124 10.101.103.31 → 224.0.1.129 PTPv2 86 Sync Message
3 0.015557624 10.101.103.31 → 224.0.1.129 PTPv2 86 Sync Message
4 0.015636935 10.101.103.31 → 224.0.1.129 PTPv2 86 Follow_Up Message
5 0.023994680 10.101.103.31 → 224.0.1.129 PTPv2 86 Sync Message
6 0.024078860 10.101.103.31 → 224.0.1.129 PTPv2 86 Follow_Up Message
7 0.031399504 10.101.103.31 → 224.0.1.129 PTPv2 86 Sync Message
8 0.031464042 10.101.103.31 → 224.0.1.129 PTPv2 86 Follow_Up Message
9 0.039642671 10.101.103.31 → 224.0.1.129 PTPv2 86 Sync Message
Step 9:
Now we will configure the slave device to receive PTP and synchronise towards.
For this we repeat Step 3 but using the details of the new device:
SSH or log into your receiving device to configure the PTP feed to be received. For timebeat software and grandmasters we SSH to the console and then access the config file:
LINUX:
root@localhost ~]# vi /etc/timebeat/timebeat.yml
WINDOWS:
Open up the timebeat.yml file using notepad or similar from your installation directory (typically recommended program files --> Timebeat....)
Step 10:
(All amended fields are highlighted)
We want to match the grandmasters PTP configuration in the receiving device.
We will want to set up our PTP domain. For now, we will stick to the default of 0 as this is also what our grandmaster has.
So all we need to amend here is the interface.
For this, we uncomment line 44 and modify the interface name to read ens1
27 # PTP Config example
28 - protocol: ptp
29 domain: 0
30 #serve_unicast: true
31 #max_unicast_subscribers: 0
32 #serve_multicast: true
33 #server_only: true
34 announce_interval: 1
35 sync_interval: 0
36 delayrequest_interval: 0
37 #unicast_master_table: ['1.2.3.4','2.3.4.5', '3.4.5.6']
38 #delay_strategy: e2e # other options which can be used are: 'p2p'
39 #hybrid_e2e: false # Send delay requests as unicast (enterprise profile)
40 #priority1: 128
41 #priority2: 128
42 #monitor_only: false
43 #use_layer2: false # Use ptp over ethernet instead of IP/UDP
44 interface: ens1
45 #profile: 'G.8275.2' # other options which can be used are: 'G.8275.1', 'G.8265.1' and 'enterprise-draft'
46 #logsource: 'Grandmaster Clock in NY4' # configurable name for source included in all logging records for source
47 #asymmetry_compensation: 0 # In nanoseconds. Static compensation for know asymmetry (+/- as the case maybe)
48 #max_packets_per_second: 0 # If inbound packet rate exceeds this a WRED algorithm is used
Once complete just save the config and quit. (if using vi the below command will do the trick).
:wq!
Step 11:
Now we start the service using the standard commands
LINUX:
root@gm01 ~]# systemctl start timebeat
WINDOWS:
The easiest method in Windows is to open up the Task Manager, select Processes, find Timebeat in the list, right-click and select start.
Step 12 - Optional:
Let's check to see if PTP is arriving on the correct interface. For this, we will just run a quick tshark command identical to Step 7
[root@fedora ~]# tshark -i ens1 port 319 or port 320
note that -i represents interface and ens1 is the interface we wish to check
We should see output like the below:
[root@fedora ~]# tshark -i ens1 port 319 or port 320
And that is a completed PTP timing network. Now all that is left is to investigate the performance.
Check out our next recipe on How to set up a monitoring solution and dashboard environment.
